產品名稱：

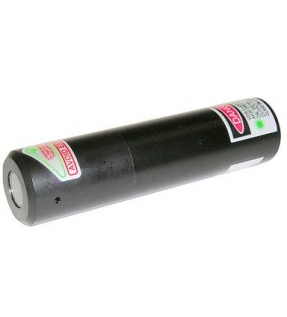

KML-G500P綠光系列
產品規格：
|
型號Model |
KML-G505P |
KML-G510P |
KML-G520P |
KML-G530P |
|
波長Wavelength |
5 3 2 n m |
|||
|
輸出功率Output Power |
5 mW |
10 mW |
20 mW |
30 mW |
|
Beam Divergence |
< 1.2 mrad |
|||
|
標點直徑Beam Diameter |
2 mm(固定焦距) Focus Fixed |
|||
|
輸入電壓Input Voltage |
AC90 ~ 260V to DC5V Adaptor (PS1) or PS3 or PS5 |
|||
|
操作溫度 Operating Temp. |
20 ~ 30 °C |
20 ~ 30 °C |
20 ~ 30 °C |
15 ~ 35 °C |
|
|
備註:G505P操作溫度20-30℃ / G505P-H操作溫度10-50℃ |
|||
|
安全等級Safety Class |
Class Ⅲa |
Class Ⅲb |
||
|
使用壽命Lifetimes |
> 3,000小時(hr) |
|||
|
外觀尺寸Demensious |
D25×L 100 (mm) |
|||
|
重量 |
85 ±5公克 ( g ) |
|||
