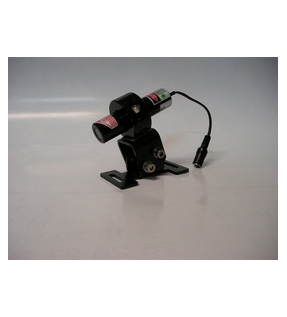

型號 Model |
NKT-G205P-H |
NKT-G505P-H |
|
|
波長Wavelength |
5 3 2 n m |
||
|
輸出功率 Output Power |
5 mW |
||
|
發散角度 Beam Divergence |
< 1.2 mrad |
||
|
標點直徑 BeamDiameter |
2 mm(固定焦距) Focus Fixed |
||
|
輸入電壓 Input Voltage |
AC90 ~ 260V to DC5V Adaptor (PS1) or PS3 or PS5 |
||
|
操作溫度 Operating Temp |
205P 操作溫度20 ~ 30 °C G205P-H/G505P-H操作溫度10 ~ 50 °C |
||
|
安全等級 Safety Class |
Class Ⅲa |
||
|
使用壽命 Lifetimes |
G205P-H/G505P-H > 5,000小時(hr) G205P> 3,000小時(hr) |
||
|
外觀尺寸Demensious |
205P/ G205P-H D20 × L 80 (mm) |
G505P-H D25 × L 80 (mm) |
|
|
重量 Weight |
205P/G205P-H 65 ±5公克( g ) |
85 ±5公克( g ) |
|
適用行業
焊接加工Welding process 橡膠加工Tire bondin
鐵材加工Metal working 印刷品加工Print processing
木材加工Wood working PCB加工 PCB processing
布料加工Fabric processing 自行車加工Bicycle processing
輪胎成型加工Tire processing 分條加工Slitting processing
高爾夫球桿組裝Golf assembly
